Industrial Elevators

Industrial personnel-and-material elevators and service elevators are an inseparable part of many industrial facilities and our products rank as the world’s best technology. We design and manufacture industrial elevators and special elevators that are made for heavy use, long life cycles and exceptional durability in the harshest of environments with a wide range of applications: bridges and tunnels, cement and lime, government and specialty, grain, metals and mining, petrochemical, refining, oil and gas, ports, shipyards and offshore, power generation etc. - for more info download catalog of Industrial elevators.

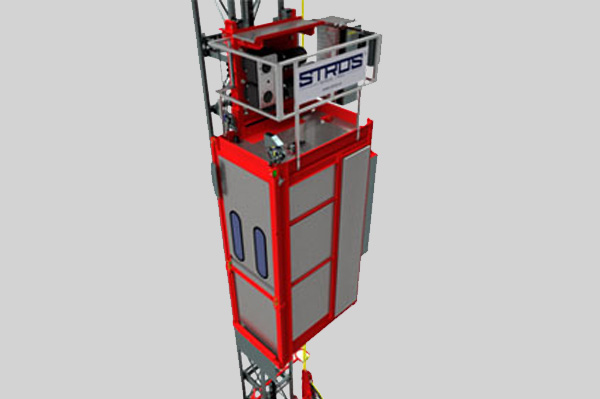

Small service elevators - load capacity 400 - 500kg [880 - 1100lbs]
	Load capacity	400kg / 880lbs, 500kg / 1100lbs
	Speed	from 35 to 45m/min [114 - 147fpm]
	Cage area	from 1,17 to 1,4m2
	Inside height of cage	2400mm
	Max lift height	350m / 1148ft
	Voltage system	3 PEN ~50Hz 400 V/TN-C-S (3 PEN ~60Hz 480 V/TN-C)
	Engine control	standard or with frequency converter
	Mast type	I, H, S, BH
Catalog sheet - Industrial Elevators 400-500kg [880 - 1100lbs]



Elevators up to 1000kg [2200lbs]
	Load capacity	up to 1000kg / 2200lbs
	Speed	up to 70m/min [229fpm]
	Cage area	up to 2,4m2
	Inside height of cage	2400mm
	Max lift height	350m / 1148ft
	Voltage system	3 PEN ~50Hz 400 V/TN-C-S (3 PEN ~60Hz 480 V/TN-C)
	Engine control	standard or with frequency converter
	Mast type	H, S, BH
Catalog sheet - Industrial Elevators up to 1000kg [2200lbs]



Elevators up to 2500kg [5500lbs]
	Load capacity	up to 2500kg / 5500lbs
	Speed	up to 90m/min [295fpm]
	Cage area	up to 5m2
	Inside height of cage	2400mm
	Max lift height	350m / 1148ft
	Voltage system	3 PEN ~50Hz 400 V/TN-C-S (3 PEN ~60Hz 480 V/TN-C)
	Engine control	with frequency converter
	Mast type	H, S, BH
Catalog sheet - Industrial Elevators up to 2500kg [5500lbs]



Elevators over 2500kg [5500lbs]
	Load capacity	up to 5000kg / 11000lbs
	Speed	up to 90m/min [295fpm]
	Cage area	up to 9m2
	Inside height of cage	2400mm
	Max lift height	350m / 1148ft
	Voltage system	3 PEN ~50Hz 400 V/TN-C-S (3 PEN ~60Hz 480 V/TN-C)
	Engine control	with frequency converter
	Mast type	H, S, BH
Catalog sheet - Industrial Elevators over 2500kg [5500lbs]

Permanentní výtahy (zahrnuje dvoustožárové výtahy)
Vnitřní rozměry výtahu	900 - 2150 x 1200 - 4880 x 2400mm 3' - 13'-0 3/4" x 3'11" - 16'-0 1/8" x 7'10 1"
Standardní světlost dveří	2000mm / 6'6 3/4"
Nosnost výtahu	400 - 6200kg / 880 - 13640lbs
Maximální rychlost výtahu	až do 90 m/min / 300fpm
Výkon motorů	dle konfigurace
Frekvenční měnič	ano nebo stykačové provedení
Napěťová soustava	dle konfigurace
Jmenovitý proud [400V / 480V]	dle konfigurace
Hlavní jištění [400V / 480V]	dle konfigurace
Max. výška zdvihu	350m / 1150 ft
Stožáry	BH, S, H, I
Informace	parametry výtahu lze upravit na přání zákazníka
Ovládání	Single Automatic / Selective Collective
Standardní výška podsady	1400mm / 4'7 1/8"
Catalog sheet - Industrial Elevators up to 1000kg
