WP 1000
| Nominal capacity |
1000kg / 2200lbs |
| Max. platform length |
10,14m / 33‘–3 ¼“ |
| Platform speed |
6,3m/min / 20fpm |
The WP 1000 work platform is used mainly in the construction industry for cladding, painting, maintenance and other similar jobs. For transport on the construction site, it can be equipped with a steerable chassis.
The platform is driven by electric motors fitted with pinions. It climbs along a mast that is identical to that of the NOV series hoist. The drive power is transferred via the rack-and-pinion mechanism. The steel structures of the chassis and the platform unit center piece are painted with two-component paints, the other sections are hot dip galvanized.
The platform can be used free-standing or anchored to a building.
| Maximal load capacity |
1000kg / 2200lbs |
| Maximum platform length |

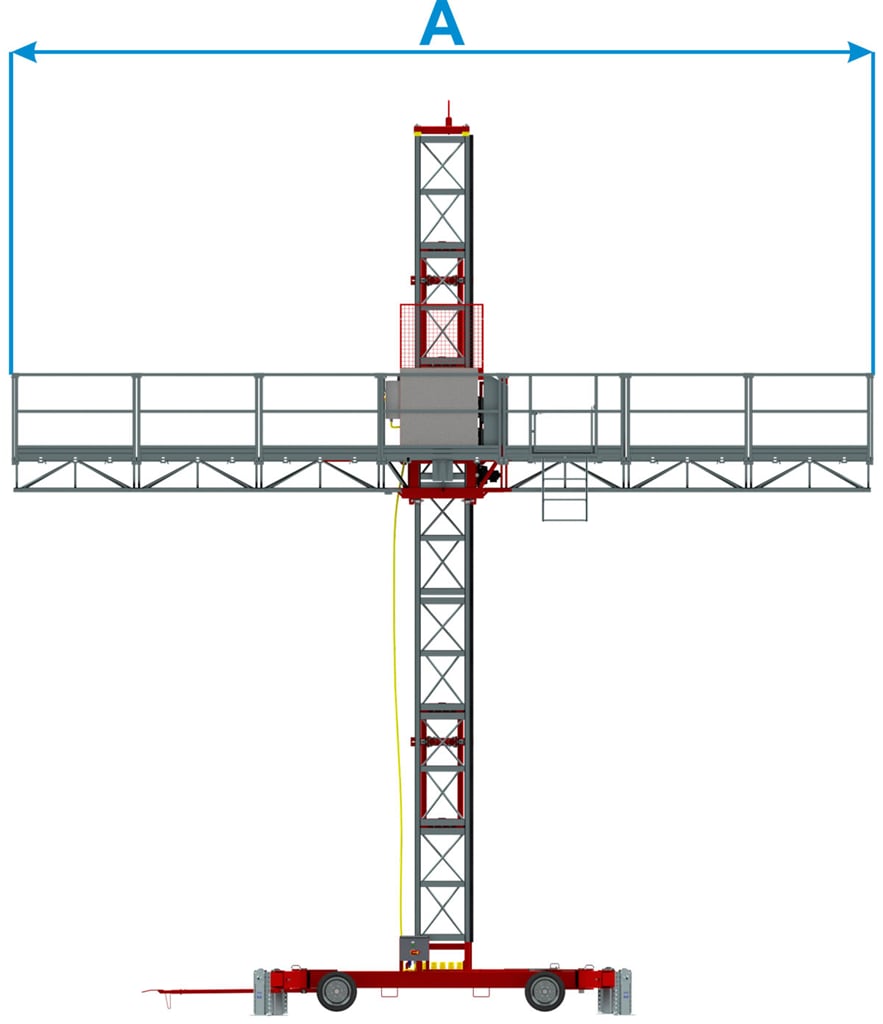

one mast design A |
10,14m / 33‘–3 ¼“ |
| two mast design B |
- |
| Speed with load |
6,3m/min / 20fpm |
| Speed without load |
- |
| Platform width + extension |
C+D |
1,42 + 0,65 m
4‘–8“+2‘–1 ½“ |
| Engine power under load 100% |
1×3kW / 1×4HP |
| Max. height of freestanding platform |
8m / 26‘ |
| Max. height of anchored platform |
100m / 330‘ |
| Voltage system |
3 NPE ~ 50 Hz 400 V/TN–S 3 NPE ~ 60 Hz 480 V |
