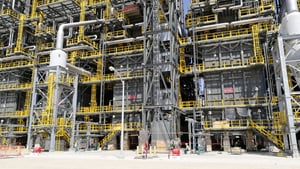

Explosion proof elevators for explosive environments, such as a refinery, combustible substance storage facility, mining facility or other environments with enhanced safety requirements (ATEX and NEC 500). We produce elevators for these specific environments according to the requirements of the ATEX and NEC 500 standards.
| Explosion-proof lifts - Ex | |
| Internal dimensions of the lift | 900 - 2000 x 1200 - 4200 x 2400mm 3' - 6'7" x 3'11" - 13'10" x 7'10 1" |
| Standard door clearance | 2000mm / 6'6 3/4" |
| Lift capacity | 400 - 3600kg / 880 - 8000lbs |
| Maximum lift speed | up to 40 m/min / 130 fpm |
| Engine power | according to configuration |
| Frequency converter | Yes or contactor design |
| Voltage system | 3PEN~50Hz 400V/TN-C-S 3PEN~60Hz 480V/TN-C |
| Rated current [400V / 480V] | according to configuration |
| Main protection [400V / 480V] | according to configuration |
| Max. lift height | 350m / 1150 ft |
| Masts | BH, S, H, I |
| Informations | lift parameters can be customized |
| Control | Single Automatic / Selective Collective |
