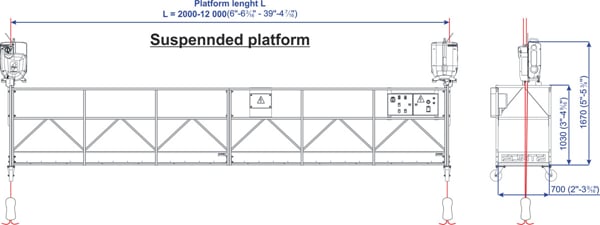

The construction of our suspended platforms is modular, making it possible to assemble any length from 2 to 12 meters. All the steel parts of the platform and the suspension beams are hot dip galvanized. The structural frame of the platform is welded of tensile steel, while the floor is of anti-skid aluminum sheeting. The individual platform sections bolt together with high grade bolts and nyloc nuts. The platform is equipped with travel wheels for easy manipulation on the construction site.
Suspended platforms - maximum travel height 100m / 330' | |||||||||||
Type | Length [m] | Configuration | Self weight [kg / lbs] | Capacity with even load distribution | Capacity with uneven load distribution | ||||||
End suspension | Suspension stirrup | End suspension | Suspension stirrup | ||||||||
ASTRO [kg] | TITAN [kg] | ASTRO [kg] | TITAN [kg] | ASTRO [kg / lbs] | TITAN [kg / lbs] | ASTRO [kg / lbs] | TITAN [kg / lbs] | ||||
ZL 2 | 2 | 2 | 284 / 626 | 420 | 420 | 420 | 420 | 420 / 926 | 420 / 926 | 420 / 926 | 420 / 926 |
ZL 3 | 3 | 3 | 322 / 710 | 630 | 630 | 630 | 630 | 630 / 1389 | 630 / 1389 | 630 / 1389 | 630 / 1389 |
ZL 4 | 4 | 2+2 | 364 / 802 | 840 | 840 | 840 | 840 | 840 / 1852 | 840 / 1852 | 840 / 1852 | 840 / 1852 |
ZL 5 | 5 | 2+3 | 402 / 886 | 1050 | 898 | 1050 | 900 | 1050 / 2315 | 900 / 1984 | 1050 / 2315 | 750 / 1653 |
ZL 6 | 6 | 3+3 | 440 / 970 | 1140 | 860 | 1085 | 800 | 1140 / 2513 | 860 / 1896 | 1084 / 2390 | 500 / 1102 |
ZL 7 | 7 | 2+3+2 | 482 / 1062 | 1120 | 818 | 1040 | 760 | 1100 / 2425 | 600 / 1323 | 850 / 1874 | 410 / 904 |
ZL 8 | 8 | 3+2+3 | 525 / 1157 | 1070 | 775 | 1000 | 700 | 900 / 1984 | 510 / 1124 | 632 / 1393 | 370 / 815 |
ZL 9 | 9 | 3+3+3 | 558 / 1230 | 1040 | 742 | 970 | 670 | 735 / 1620 | 468 / 1031 | 568 / 1252 | 355 / 782 |
ZL 10 | 10 | 2+3+3+2 | 598 / 1318 | 1000 | 702 | 927 | 630 | 650 / 1433 | 430 / 948 | 520 / 1146 | 325 / 716 |
ZL 11 | 11 | 3+3+2+3 | 641 / 1413 | 960 | 659 | 884 | 590 | 590 / 1300 | 385 / 848 | 481 / 1060 | 302 / 665 |
ZL 12 | 12 | 3+3+3+3 | 674 / 1486 | 674 | 626 | 850 | 550 | 556 / 1225 | 365 / 804 | 455 / 1003 | 280 / 617 |
